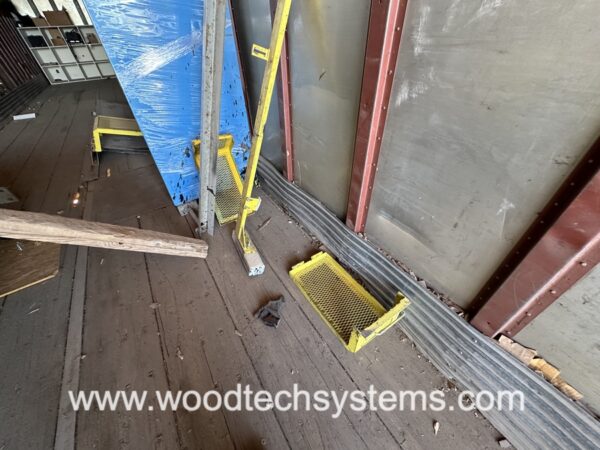

Alpine PF-90 Linear Wall-Panel saw, processes 16-ft long max. material via a 16-ft long infeed and 16-ft long outfeed conveyor, material pusher, PC and enclosure. According to OEM literature, this computer-controlled saw uses data imported directly from design software (Alpine software WBX files) to cut lumber into wall panel components while optimizing the utilization of material. The PF-90 has the potential to mark each component with critical information that speeds the layout and assembly process. System automatically pushes the lumber from the load position to each cut position and signals the saw to make the cut. Primary saw has had new drive belts, ram valves, touchscreen monitor and print heads installed. 20” blade. Working unit is shown disassembled in enclosed trailer. 230/460v, 3 ph power (120vac to computer).
Includes second PF-90, located inside of the modified 40-ft high-cube container, can be used for parts. It was designed to cut 20-ft long max material, includes 22-ft infeed and 12-ft outfeed, upcut saw and control cabinet.

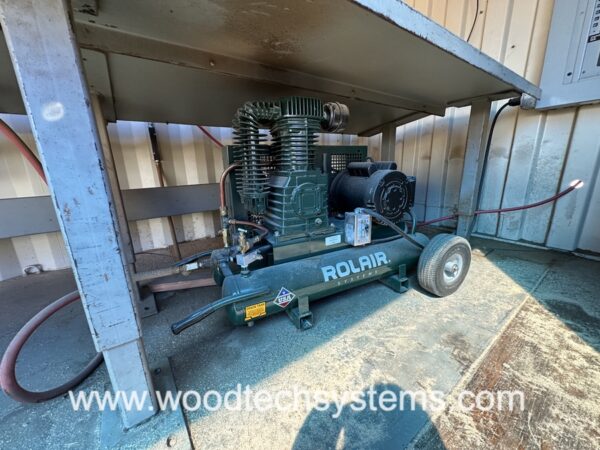

This wall-panel cutting/marking equipment is contained in a modified 40-ft high-cube shipping container that features two roll-up steel doors for ventilation and easy access, wall-mounted electrical and control panels for saw, easily-stowed HD sun-fabric overhangs, and exhaust fan. Includes its own portable air compressor. 208 volt, 3 phase electrical required.
